Elecom LD-CT2/DG100/RS CAT5e LAN Cable, 328.4 ft (100 m), RoHS Compliant, Dark Green

Specifications: ■Standards: Cat5e compatible (10BASE-T, 100BASE-TX, 1000BASE-T) ■Transmission speed: 1Gbps ■Transmission band: up to 100MHz ■ Cable length: about 100m ■ Cable Thickness: Approx. 5.1mm ■Number of cores: 8 cores ■Wiring Method: - ■ Yori cores (twisted pair cable): Yes. ■Shielding: No (UTP specification) ■Cross materials: x ■ External Sheath (coating) Material: PVC ■Length mark: Yes ■Color: Dark Green ■ Conductor composition: single wire (24AWG) ■ Conductor thickness: AWG24 ■Connector Included: No ■Molded Connector: x ■Slim Connector: x ■ Connector with nail break prevention cover: x - Cable winding function: x ■Package form: cardboard box (lylex rolling) ■ Environmental Consideration: EU RoHS Compliant (10 materials), environmental packaging ■ Compatible Connectors: LD-RJ45T10/T, LD-RJ45T10A, LD-RJ45T100 【Description】 ■ This is a self-working long type Cat5e compatible LAN cable with low transmission loss and stable data transfer in environments of 100BASE-TX and 1000BASE-T. ■ Relex type in a box that prevents cable tangles. ■ Comes with a length mark that shows the remaining charge of use. Length marks are estimated for remaining amount. - Single-wire specification with low conductivity loss and stable data transfer. ■ It has flame retardant that passes 60 degree tilt test (JIS C 3005). ■ Compatible with optical communication lines, CATV lines, ADSL lines, and ISDN lines. ■ Compatible connectors include LD-RJ45T10/T (10 pieces), LD-RJ45T10A (10 pieces), LD-RJ45T100 (100 pieces). ■ Environmentally friendly product complies with the EU "RoHS Directive (restriction on use of harmful substances on electrical and electronics) ■ The packaging container of the product is made up of only paper, cardboard and polybag. Product inquiries Elecom General Information Center TEL. 0570-084-465 FAX. 0570-050-012 Reception Time / 10:00 - 19:00 24/7

• Cat5e compatible LAN cable is a self-working long type that allows stable communication in 100BASE-TX and 1000BASE-T environments. Single wire cable with low attenuation even at long distances
• This is a self-working long type Cat5e compatible LAN cable that allows for stable data transfer in environments of 100BASE-TX and 1000BASE-T

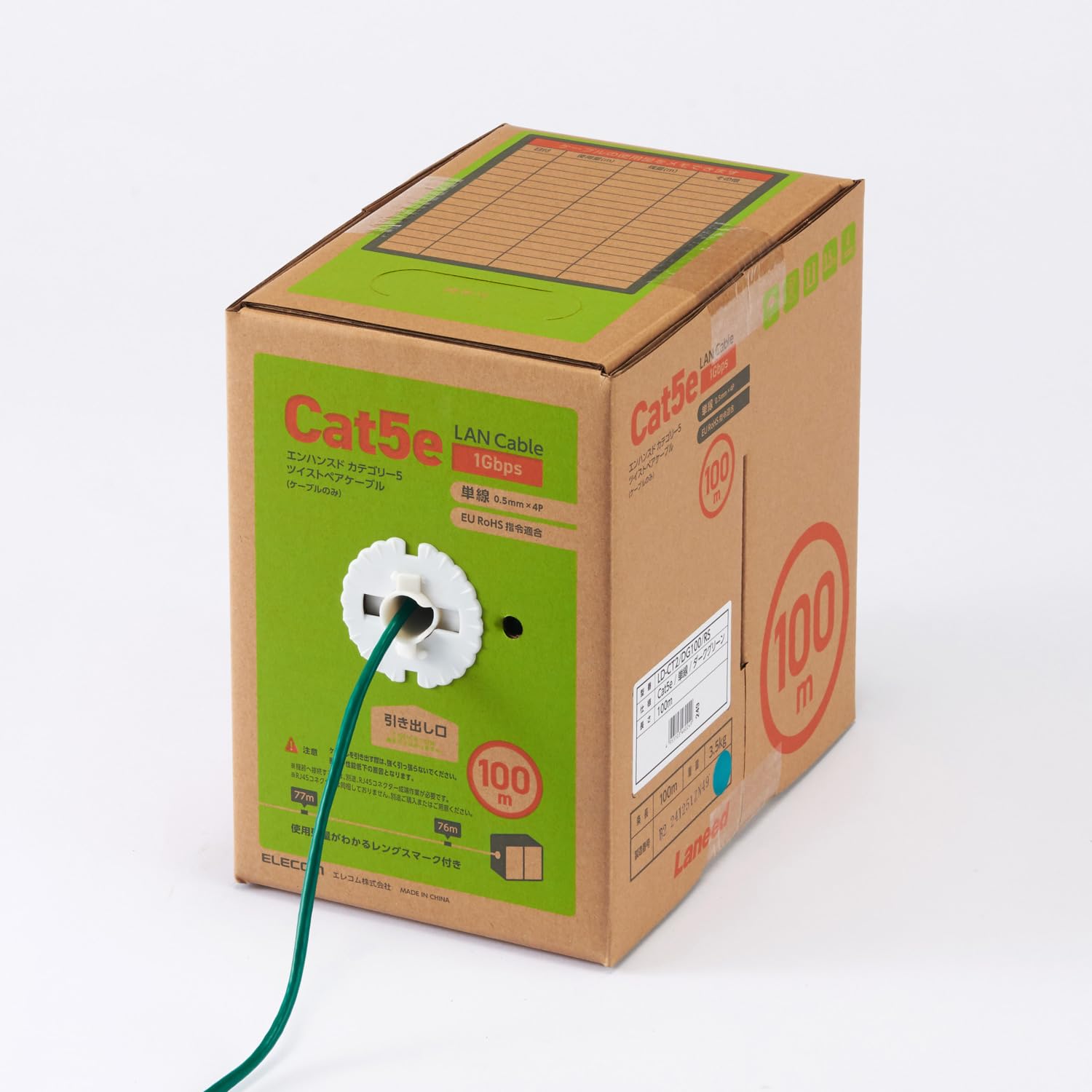

• This is a relex type with a box that prevents cable tangles
• Comes with a length mark that shows how much you use it. Length marks are estimated for remaining amount
• Single wire specification with low conductivity loss and stable data transfer
• Flame retardant passes 60 degree tilt test (JIS C 3005)
• Supports optical communication, CATV lines, ADSL and ISDN wires
• Compatible connectors include LD-RJ45T10/T (10 pieces), LD-RJ45T10A (10 pieces), LD-RJ45T100 (100 pieces)
• Environmentally friendly with EU "RoHS Directive (10 Substances)
