Portkeys LH5C 5.4" Camera Field Monitor 4K HDMI Input, Camera Control Touch to Focus for FX2/FX3/FX30/A6700/A7S III/A7M IV, R5/6/7/8, GH6/BGH1/S5, 3D LUT Waveform Focus Peaking DSLR Monitor
4.2 (134 items)
Limited Time SaleUS$149.40 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 215145472 | Release Date | 2026/04/12 | List Price | US$99.60 | Model Number | 215145472 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

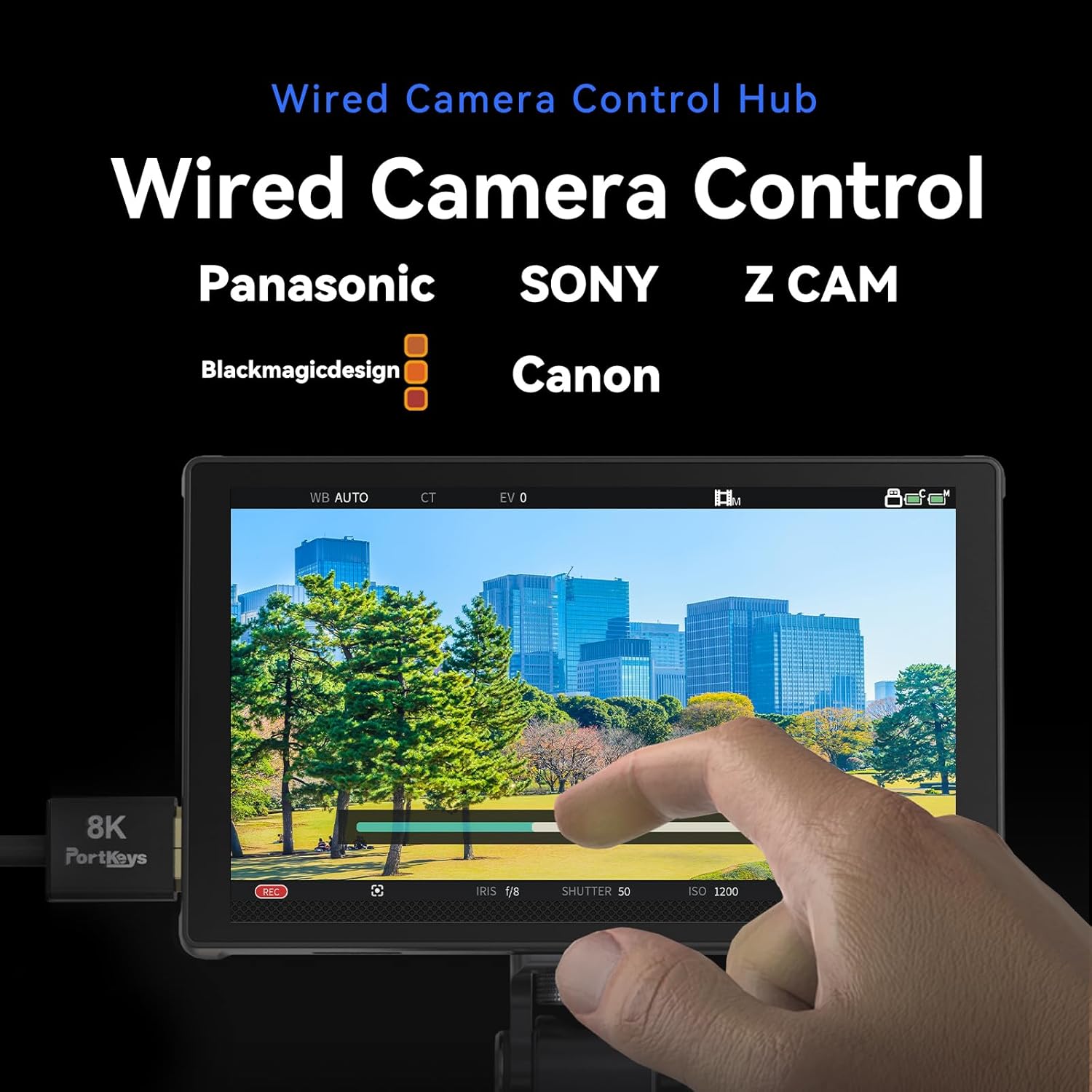

- 【Seamless Camera Control via Touchscreen】Directly control S0NY, CAN0N, РANAS0NIC cameras from the LH5C monitor. Compatible models include A7III/A7IV/A7SIII/A7MIV/FX3/FX6, R5/R6/R7/R8/EOS C400/C80, GH5II/GH6/GH7/S5/S1H and more. Adjust aperture, shutter speed, ISO and white balance without touching your camera. Includes intelligent Focus Tracking Frame for S0NY cameras (other brands via upcoming firmware). Please refer to product images for complete compatibility list.
- 【Outdoor-Ready 5.4" HD IPS Screen】Professional 800 nits display (1920*1152) with included sunshade for reliable outdoor monitoring. 178° ultra-wide viewing angle ensures consistent colors from any position. 85% DCI-P3 color gamut with full Rec.709 coverage, 1000:1 contrast, and 10-bit color depth deliver accurate color reproduction for critical work.
- 【Freeze Frame with Overlay Comparison】Capture and store reference frames on USB drive, then overlay them semi-transparently with live video for precise shot matching. Perfect for maintaining continuity between takes, matching actor positions, and recreating complex compositions frame-by-frame.
- 【Complete Filmmaker's Toolkit】Comprehensive professional tools: waveform monitor, histogram, audio meters, customizable focus peaking, zebra patterns, and ARRI False Color. Features 3D LUT support (up to 20 custom LUTs) with real-time HDMI output for seamless color workflow. Includes anamorphic de-squeeze (10 presets + custom 0.25X-4.00X), rectangle cropping, crosshair, and framing grids.
- 【4K Input with Flexible Power & Mounting】Supports 4K30p lossless input with 1080p60 output. Lightweight design at only 178g for extended handheld use without fatigue. Multiple 1/4" screw holes on bottom and sides for versatile mounting and vertical shooting support. Includes 3.5mm headphone jack for audio output. Dual power options: USB-C 5V or NP-F battery 7-24V. (Battery not included)
| Brand | Portkeys |
|---|---|
| Color | LH5C |
| Brightness | 800 Candela per Square Meter |
| Model Name | LH5C |
| Resolution | FHD 1080p |
| Color Gamut | 100 |
| Item Weight | 178 Grams |
| Screen Size | 5.4 Inches |
| Aspect Ratio | 16:9 |
| Display Type | LED |
| Manufacturer | Portkeys |
| Model Number | LH5C |
| Refresh Rate | 60 Hz |
| BuiltIn Media | Camera Monitor |
| Response Time | 5 Milliseconds |
| Screen Finish | Matte |
| Viewing Angle | 178 Degrees |
| Contrast Ratio | 1000:1 |
| Total Usb Ports | 1 |
| Has Color Screen | Yes |
| Native Resolution | 1920 x 1152 |
| Display Technology | IPS |
| Additional Features | Camera Control, Freeze Frame with Overlay Comparison, Touchscreen |
| Warranty Description | 1 Year Global Warranty by Portkeys |
| Hardware Connectivity | DisplayPort, HDMI |
| Connectivity Technology | HDMI |
| Item Dimensions D x W x H | 0.87"D x 5.32"W x 3.25"H |
| Display Resolution Maximum | 1920 x 1152 Pixels |
| Total Number of HDMI Ports | 1 |
